The utility-scale PV market is maturing. Final 12 months, 22.5 GW of utility-scale PV was put in within the US, a 77% bounce from 2022. Photo voltaic PV accounted for over half (53%) of all new electricity-generating capability additions for the primary time ever. That truth bears repeating: nearly all of the brand new energy sources on the grid final 12 months had been large-scale photo voltaic crops.
As renewables gobble up grid capability, utility-scale builders are pressured to ship excessive volumes of dependable, cost-effective installations. It is a huge alternative and a substantial problem. On one hand, the checklist of viable utility-scale applied sciences is longer than ever and continues rising. On the opposite, PV methods are being requested to do increasingly. Power storage attachment charges are on the rise, utilities are demanding superior grid providers, and the supply of “splendid” plots of land is dwindling.
Selecting the best know-how for every undertaking is tough. This text will overview maybe essentially the most important parts in a PV system, inverters, and evaluate the 2 predominant choices dominating as we speak’s utility-scale market: central and string inverters.
What are central and string inverters?
There are three major tiers of PV inverters: microinverters, string inverters, and central inverters. Since microinverters are usually not rated for utility-scale voltages, we are going to largely ignore them on this article.

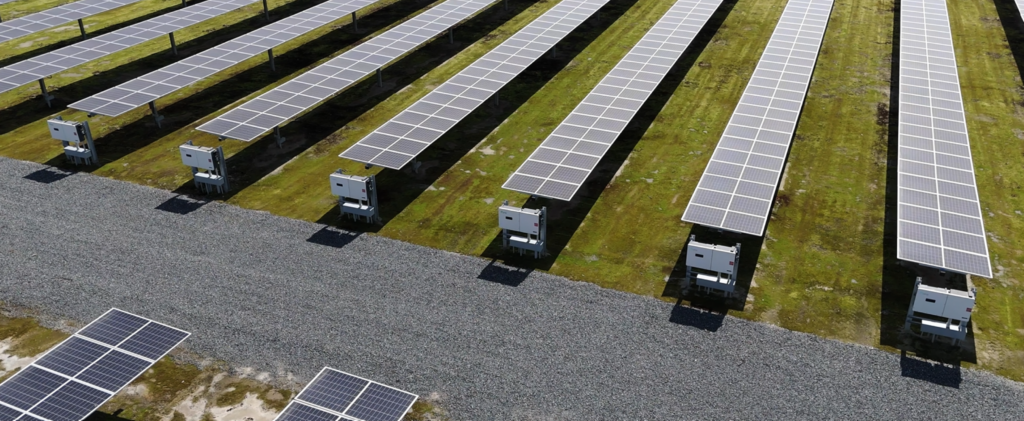

String inverters convert DC energy from “strings” of PV modules to AC and are designed to be modular and scalable. Smaller string inverters could have as few as one enter, with one PV string per enter. Bigger string inverters can deal with many string inputs. In each circumstances, string inverters will probably have built-in most energy level trackers (MPPTs) on their enter (dc) aspect to spice up array efficiency on the string degree. Newer string inverter fashions have upwards of 12-15 MPPTs and may deal with dozens of PV string inputs.
Notice: A “string” is any collection mixture of two or extra PV modules. For utility-scale methods, strings typically encompass 20-30 modules put in in collection.
String inverters have traditionally been extra widespread on the residential and industrial scales, the place string-based designs with MPPTs are efficient at maximizing power harvest from arrays with partial shading, a number of orientations, or undulating terrain. Nevertheless, current know-how enhancements have boosted string inverter energy densities, making them extra aggressive with…

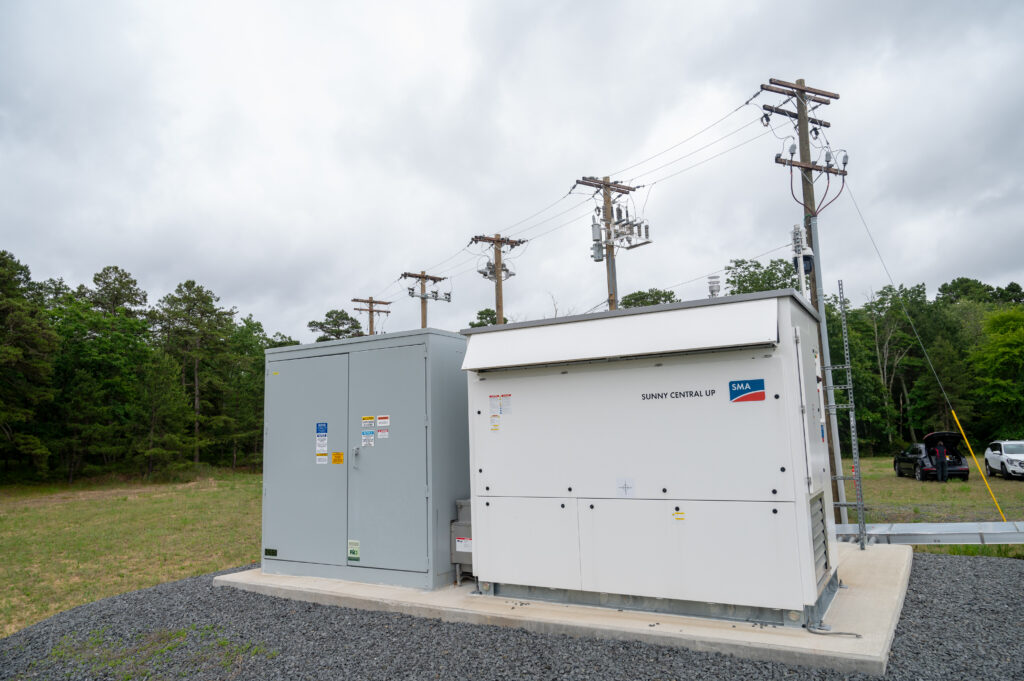

Central inverters are designed to centralize energy flows and convert giant portions of energy from dc to ac in a single unit. The inputs to central inverters are most frequently mixed dc circuits from many (or all) strings within the array that feed a small variety of built-in MPPTs.
The probability of encountering a central inverter on a undertaking will increase with undertaking measurement and age. Utility-scale initiatives above ~10 MW are the most typical utility as we speak. Massive C&I and smaller utility-scale initiatives from just some years in the past are prone to have central inverters as effectively, for causes we’ll contact on within the subsequent part.
An Abbreviated Historical past of PV Inverters
The primary PV inverters had been developed within the Eighties as a derivative of drive system applied sciences. On the time, all fashions could possibly be thought-about central inverters rated to deal with no various kilowatts. As with every new know-how, early iterations had been removed from excellent. Paradoxically sufficient, the drawbacks of early central inverters (mismatch losses, rigid system design) led to the event of module-level microinverters.
The PV inverter market of this period had two bookends: microinverters for residential and small industrial initiatives and more and more giant central inverters for all the pieces else. The primary era of string inverters was developed within the mid-Nineties to assist initiatives that weren’t particularly giant or small. Initially designed for a single string enter, early string inverters had been viable for residential and industrial purposes however struggled to scale up.
With the groundwork laid for a three-tiered inverter market, the following many years had been spent refining every know-how. Typically, innovation was pushed by codes, requirements, and AHJs (fast shutdown and UL 3741), and different occasions by producers themselves (anti-islanding and grid-forming capabilities).
That brings us to as we speak, the place the traces of the three-tiered market have blurred. Microinverters and different module-level energy electronics will be discovered on residential rooftops in addition to industrial methods. Central inverters are put in in giant industrial and utility-scale methods. String inverters are designed for all system sizes.
Central Inverter Advantages
Central inverters are giant — within the 1-5 MW vary per unit. Most, however not all, 10+ MW PV initiatives operational as we speak could have a number of central inverters. A number of the causes for central-inverter dominance at bigger scales are as follows:
Decrease capital expenditure (CAPEX): Whereas string inverter prices have come down, central inverters are normally cheaper upfront (in dollars-per-watt). Contact your inverter producer for the newest pricing estimates.
Fewer tools areas: Builders will inherently want fewer central inverters than string inverters for a similar general undertaking capability, leaving more room for the PV array and fewer for inverters and steadiness of system parts.
Decrease perceived danger: Central inverters are extra mature than string inverters. Many examples of central inverters working for over a decade on utility-scale crops exist. Builders have a tendency to stay with recognized portions even when comparable new substitutes can be found.
Simplified system design: Designers have a lot to contemplate when designing a utility-scale system. Typically talking, the less parts, the less mounting configurations, labels, wire sizes, safety mechanisms, tools areas, and entry factors are required.
String Inverter Advantages
String inverters are bodily smaller than central inverters, however the hole of their energy output is narrowing. Presently, builders can supply string inverters rated for upwards of 350kW per unit. Many string inverter producers supply skidded or cluster-mounted options that co-locate tons of of kilowatts of string inverters right into a “digital central inverter” configuration. Some utility-scale builders are switching to string inverters on account of:
Decrease operational expenditure (OPEX): A smaller type issue means smaller elements, shorter spare elements lists, and easier repairs. No particular coaching or heavy equipment is required to restore most string inverters.
Improved system-level resiliency: Think about two websites – one with a 5 MW central inverter and one other with twenty 250 kW string inverters. If the central inverter fails, your complete website goes offline. If one string inverter fails, 95% of website manufacturing continues unimpeded.
Versatile system design: Modular string inverters open many doorways for system layouts. Inverters will be distributed on the finish of array rows, clustered in “digital central” preparations, co-located close to the purpose of interconnection, and something in between.
Elevated power harvest: String inverters with a number of MPPTs will produce extra energy. This impact is extra pronounced on websites with undulating terrain, differing array orientations, and dusty or shady environments.
Conclusion
The reply to virtually any PV system design query is “it relies upon.” When deciding on an inverter for a utility-scale system, there is no such thing as a proper or incorrect reply; there’s only a vary of tradeoffs to contemplate. Is minimizing CAPEX extra necessary than design flexibility? A central inverter could also be what you want. Is your website uneven, and is your lifetime O&M funds restricted? It’s price trying into string inverters.

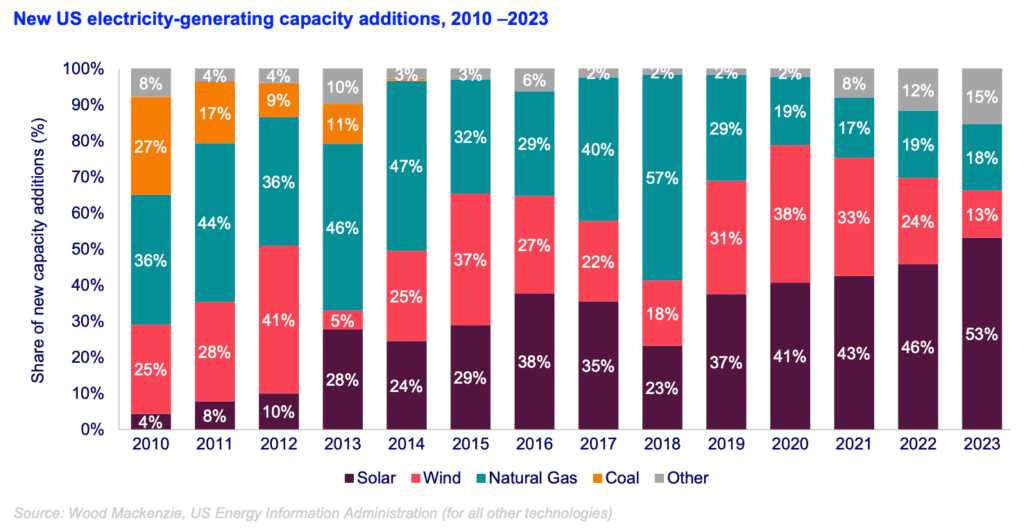

Extra grid-tied PV was put in than another era useful resource final 12 months. As development continues and the inverter market matures additional, builders could have increasingly choices to select from. Decide the priorities and constraints for every undertaking and use these parameters to pick the inverter that makes essentially the most sense.
