Synthesis as well as characterization
A hydrovoltaic effect-enhanced photocatalytic system made up of polyacrylic acid (PAA) as well as cobaltous oxide (CoO)– nitrogen drugged carbon (NC), called PAA/CoO– NC, was prepared as received Fig. 1a. CoO– NC, which was produced by means of thermal therapy, was stemmed from a Co-based steel– natural structure and after that distributed in an option including an acrylic monomer (AA) as well as ammonium persulfate (APS) for cross-linking. Later, CoO– NC was enveloped in the cross-linked PAA to develop PAA/CoO– NC. Number 1b reveals a schematic representation of the hydroelectric generator of PAA/CoO– NC, as well as its manufacture procedure of spreading movie is received information in Fig. S1. A picture of a regular PAA/CoO– NC hydroelectric generator is presented in Fig. 1c. Checking electron microscopy (SEM) as well as transmission electron microscopy (TEM) dimensions were performed to define product morphology. The SEM picture of PAA/CoO– NC validates that its permeable framework works as a channel for water transport (Fig. 1d). The TEM picture of the suggested system reveals cross-linked PAA chains covering CoO– NC nanoparticles (Fig. 1e). The high-resolution TEM (HRTEM) picture of PAA/CoO– NC reveals a 0.28 nm latticework of the (200) airplane of CoO 11 The bordering amorphous compound is credited to NC as well as PAA (Fig. 1f). CoO– NC has a polyhedral morphology, as received Fig. S2a as well as S2b. The SEM picture of the CoO– NC spreading movie reveals a nanoparticle packaging morphology (Fig. S2c). The high-angle annular dark-field scanning TEM (HAADF-STEM) essential mapping pictures of CoO– NC as well as PAA/CoO– NC both reveal the circulations of the Carbon monoxide, O, C, as well as N aspects (Fig. S2d as well as S2e). Cross-sectional pictures of both CoO– NC as well as PAA/CoO– NC reveal a density of 300 μm (Fig. S2f as well as S2g).

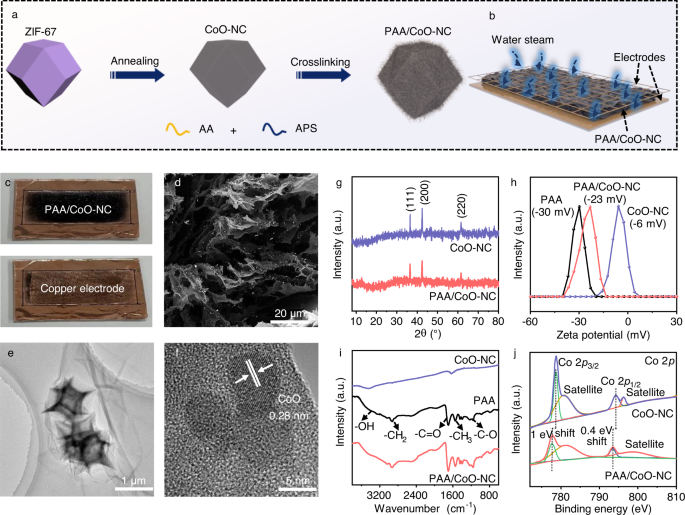

a The ready procedure of PAA/CoO– NC (AA: acrylic acid; APS: ammonium persulfate); b PAA/CoO– NC hydroelectric generator prep work (see Fig. S1 for the prep work procedure for information); c Picture of the ready PAA/CoO– NC hydroelectric generator; d SEM picture of PAA/CoO– NC; e TEM picture of PAA/CoO– NC; f HRTEM picture of PAA/CoO– NC; g XRD patterns of CoO– NC as well as PAA/CoO– NC; h Calculated zeta capacities of CoO– PAA, paa/coo as well as nc– NC; i FTIR ranges of CoO– NC, PAA as well as PAA/CoO– NC; j Carbon Monoxide 2 p XPS ranges of CoO– NC as well as PAA/CoO– NC. Resource information are supplied as a Resource Information data.
The X-ray diffraction (XRD) ranges of PAA/CoO– NC as well as CoO– NC display screen particular tops representing the face-centered cubic framework of CoO (JCPDS 48-1719) (Fig. 1g) 8,11 The zeta prospective dimension in water validates the adversely billed surface area of PAA/CoO– NC; it has a capacity of − 23 mV, which can bring in counterions of H+ (Fig. 1h) 23 Fourier change infrared (FTIR) spectroscopy reveals the main stretches of– OH,– C= O,– C– O,– CH 2, as well as– CH 3 in PAA/CoO– NC because of the presented PAA (Fig. 1i) 9 X-ray photoelectron spectroscopy (XPS) dimensions are received Fig. 1j as well as S3. The Carbon monoxide 2 p XPS ranges of PAA/CoO– NC as well as CoO– NC program 2 p 3/2 as well as 2 p 1/2 functions as well as 2 satellite tops, validating the CoO chemical nature 8,11 The small power changes of Carbon monoxide 2 p 3/2 as well as 2 p 1/2 in PAA/CoO– NC result from the solid communication in between CoO as well as PAA 12 The CoO web content percent in CoO– NC as well as PAA/CoO– NC has to do with 41% as well as 23%, specifically (Tables S1– S3). The C 1 s as well as N 1 s XPS ranges in Fig. S3a as well as S3b, specifically, reveal the particular C– C, C= N, C= O, as well as Carbon monoxide– N comes to a head for PAA/CoO– NC as well as CoO– NC, confirming the development of the NC framework 8 The electron spin vibration top at g= 2.004 signifies the CoO oxygen issue observed in CoO– NC as well as PAA/CoO– NC (Fig. S4) 7 PAA/CoO– NC is a lot more hydrophilic than CoO– NC because of the oxygen-containing practical teams of PAA, as disclosed by the water get in touch with angle examination (Fig. S5). The Brunauer– Emmett– Bank Employee (WAGER) dimension reveals a big certain area of 102 m 2 g − 1 as well as an ordinary mesopore size of 20 nm for PAA/CoO– NC (Fig. S6).
Hydrovoltaic impact as well as voltage adjusting
The hydrovoltaic procedure as well as voltage generation are very affected by the ion diffusion range, relocating rate, as well as moistening habits, as received Eq. (1 ) 12:
$$ {{{{{rm {V}}}}}},= mathop {amount} restrictions _ {{{{{rm {m}}}}} =1} ^ {{{{{rm {n}}}}}} {{i}} _ {{m}} Delta {{R}} _ {{m}} = {int} _ {0} ^ {{{{{rm {d}}}}}} frac {{x}} {{d}} {{q}} _ {0} {Wv} frac {{{R}} _ {{sq}}} {{W}} {dx} = frac {1} {2} {{R}} _ {{sq}} {{q}} _ {0} {vd} $$
( 1 ).
where V, W, i m, as well as ( Delta) R m are the voltage, size, present, as well as resistance, specifically; x, d, q 0, v, as well as R sq represent the water diffusion range, water diffusion deepness, fee quantity, relocating rate, as well as square resistance, specifically. The moistening habits of the power generator can be controlled by the family member moisture (RH) in the system. The relocating rate of water in the power generator can be checked out by brightening the system with light 12 These procedures are more described by the ionization equilibrium as well as diffusion of water particles, as shared by the adhering to van’t Hoff Eq. (2) as well as Nernst Eq. (3 ) 12,26,27,28,29,30,31:
$$ frac {{{{{{rm {d}}}}}} lnk} {{{{{{rm {d}}}}}} T} =frac {{Delta} _ {r} {H} _ {m} ^ {*}} {{{{{{rm {R}}}}}} {T} ^ {2}} $$
( 2 ).
$$ {{{{{rm {V}}}}}} =left|frac {{{{{{rm {R}}}}}} T} {{{{{{rm {F}}}}}}} {{{{{mathrm {ln}}}}}} frac {{} _ {2}} {{} _ {1}} $$
( 3 ).
where ( k),(, T), ( {{mbox {R}}} ), ∆ r( {H} _ {m} ^ {{*}} ), ( {{mbox {F}}} ), as well as ( V) represent the equilibrium coefficient, temperature level, gas constant, basic enthalpy adjustment, Faraday continuous as well as voltage, specifically, as well as a 2 as well as a 1 stand for the high- as well as low-concentration H+ ion tasks, specifically. According to Eqs. (2) as well as (3 ), at ambient temperature level, voltage is symmetrical to the RH as well as relocating rate, which boosts the likelihood of ionization response (i.e., offers adequate water particles to make it possible for movement of H+ ions) as well as ion diffusion coefficient (i.e., causes a lot more H+ ions to scattered) 31,37
Based Upon the above concept, we almost checked out the variables of voltage adjusting in the hydrovoltaic effect-enhanced photocatalytic system. We enhanced the surface location, as well as density of the power generator, as shown in Fig. S7, as well as Fig. 8 as well as Keep In Mind S1. The ideal area, as well as density of the power generator are 15 centimeters 2, as well as 300 μm, specifically. We tuned the RH problems at various prices of Ar/H 2 O heavy steam shot right into the activator (100– 1300 ml h − 1), as received Fig. 2a. PAA/CoO– NC gets to the highest possible voltage (~ 280 mV) at a 1100 ml h − 1 Ar/H 2 O heavy steam shot price, recommending a solid connection in between the electric generation efficiency as well as wetness web content variant. At greater moisture (Ar/H 2 O heavy steam shot 1300 ml h − 1), the water heavy steam will totally fill as well as cover the whole membrane layer, causing the loss of water heavy steam slope as well as hydrovoltaic impact 16 The outcome voltage of CoO– NC reveals a comparable variant in the established RH array (Fig. S9), with a maximized voltage of 106 mV at the 1100 ml h − 1 Ar/H 2 O heavy steam shot price; this number is less than that of PAA/CoO– NC because of CoO– NC’s somewhat weak hydrovoltaic impact generation.

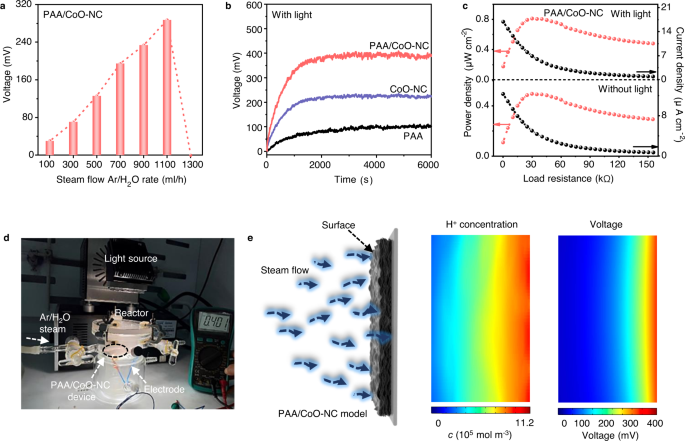

a Calculated outcome voltage of PAA/CoO– NC under various Ar/H 2 O circulation prices; b Calculated outcome voltage for CoO– PAA, paa/coo as well as nc– NC in time with light lighting (light strength: AM 1.5 G; 100 mW centimeters − 2); c Outcome power as well as present thickness of PAA/CoO– NC under various lots resistances with or without light lighting. Red arrowhead stands for power thickness; Black arrowhead stands for present thickness; d Picture of the PAA/CoO– NC hydroelectric generator for power generation under light lighting (AM 1.5 G, 100 mW centimeters − 2) as well as at Ar/H 2 O shot price of 1100 ml h − 1; e Mathematical simulations of the electrical area as well as H+ ion circulation on PAA/CoO– NC in cross sectional sight (water heavy steam diffuses from the surface area to the base of PAA/CoO-NC). Resource information are supplied as a Resource Information data.
After that, we examined the impact of light lighting on the system for wetness moving. The light lighting causes a greater temperature level externally of PAA/CoO– NC, bringing a boosted relocating rate of water heavy steam in the nanochannel of PAA/CoO– NC (comprehensive connection seen in Sustaining Info of Note S2, Fig. S10). Along with a boosted rate of water heavy steam generated by the light lighting, the inhomogeneous circulation of the warm (i.e. thermo-electric impact) as well as photogenerated providers (i.e. photoelectric impact) generated by light lighting take on a boosted voltage generation. PAA/CoO– NC, PAA, as well as CoO– NC display voltages of 402, 86, as well as 230 mV, specifically, under light lighting (Fig. 2b); these outcomes surpass those in the event without light lighting, as received Fig. S11. Therefore, light lighting can enhance the relocating rate, therefore improving voltage generation. Power generation for PAA/CoO– NC was examined by attaching various exterior lots resistances (from 1 Ω to 150 kΩ) to the system (Fig. 2c). At a lots resistance of 33 kΩ, the power thickness gets to optimum worths of 0.81 as well as 0.49 μW centimeters − 2 for the instances with as well as without light lighting, specifically, whereas both present thickness progressively lower to absolutely no. Significantly, the enhanced power generation efficiency of PAA/CoO– NC approaches that of crossbreed nanomaterials in moisture-induced power generation (Note S3 as well as Table S5). The power generation for CoO– NC reveals a comparable variant however with somewhat reduced power thickness of 0.33 as well as 0.19 μW centimeters − 2 for the instances with as well as without light lighting, specifically (Fig. S12).
Number 2d reveals a picture of PAA/CoO– NC for power generation with light lighting (AM 1.5 G, 100 mW centimeters − 2) at the Ar/H 2 O heavy steam shot price of 1100 ml h − 1; the searchings for confirm the existence of the hydrovoltaic impact in the suggested system. The PAA/CoO– NC hydroelectric generator has actually been efficiently created based upon a wetness electrokinetic impact in a nanochannel of PAA/CoO– NC 15,30 The water heavy steam is revealed externally of PAA/CoO– NC and after that diffused along the nanochannel to the base (the information system as well as water heavy steam diffusion course seen in Fig. S13). The PAA/CoO-NC creates a pressure-driven circulation providers counter-ions of H+ to develop an electrical present in the circulation, at some point getting to a balance of H+ ions diffusion, causing a continuous voltage outcome 15,30 We better examined the hydrovoltaic electric area as well as H+ ion circulation making use of the Gouy– Chapman– Stern version, as received Fig. 2e 11,26,38 Keep in mind S4 includes the controling formulas as well as limit problems made use of in the version. The substitute voltage for PAA/CoO– NC is efficiently 400 mV, which is close to the speculative worth in Fig. 2b. The H+ ion circulation differs throughout the product as well as reveals a spike beside where the heavy steam streams (top section) 39,40 The substitute outcomes of CoO– NC under similar problems reveal a voltage of ~ 200 mV, as received Fig. S14; this outcome follows the speculative worth of CoO– NC in Fig. 2b.
Photocatalytic water splitting efficiency
We performed hydrogen manufacturing experiments to verify the hydrovoltaic electrical area driven electrochemical responses throughout photocatalytic water splitting. The ultraviolet– noticeable scattered reflectance spectroscopy (UV– vis DRS) dimensions of PAA/CoO– NC as well as CoO– NC exhibition comparable optical absorption outcomes (Fig. S15). The photocatalytic efficiency of the system was examined at various Ar/H 2 O heavy steam shot prices (100– 1300 ml h − 1) according to numerous ambient RH worths in the activator. A 0.1 wt% Pt cocatalyst was packed on the photocatalyst by means of photodeposition. The H 2 manufacturing quantity of PAA/CoO– NC progressively boosts from 3.1 to 12.1 mmol in 5 h as the Ar/H 2 O heavy steam shot price rises from 100 to 1100 ml h − 1 (Fig. 3a). This pattern follows the boosting hydrovoltaic electrical area in Fig. 2a. H 2 manufacturing goes down to 2.4 mmol at an Ar/H 2 O heavy steam shot price of 1300 ml h − 1 because of the loss of the hydrovoltaic impact, near the worth of 2.2 mmol immersed in water. Appropriately, the major oxidation item of H 2 O 2 is spotted (Keep in mind S5 as well as Fig. 3b); it boosts from 2.5 to 5.1 mmol and after that reduces to 2.1 mmol. This variant fad resembles that of H 2 manufacturing. The enhanced H 2 development price of PAA/CoO– CN is 48.4 mmol g − 1 h − 1 at the Ar/H 2 O heavy steam shot price of 1100 ml h − 1, as illustrated in Fig. 3c. This outcome is roughly 5 times more than that at the 1300 ml h − 1 Ar/H 2 O heavy steam shot price (9.8 mmol g − 1 h − 1). The equivalent H 2 O 2 manufacturing price is 20.4 mmol g − 1 h − 1, which is greater than two times that at the 1300 ml h − 1 Ar/H 2 O heavy steam shot price (8.4 mmol g − 1 h − 1). The photocatalytic efficiency of CoO– NC, as received Fig. S16 better validates the improved feature of its hydrovoltaic impact.
a Time-dependent photocatalytic H 2 manufacturing of PAA/CoO– NC at various Ar/H 2 O prices from 100 to 1300 ml h − 1, as well as immersed in water; Pt cocatalyst is packed making use of a photodeposition technique; The light is a solar simulator at AM 1.5 G lighting (100 mW centimeters − 2); b Time-dependent photocatalytic H 2 O 2 manufacturing of PAA/CoO– NC at various Ar/H 2 O prices from 100 to 1300 ml h − 1, as well as immersed in water; c The photocatalytic H 2/ H 2 O 2 manufacturing prices of PAA/CoO– NC at various Ar/H 2 O prices from 100 to 1300 ml h − 1 representing the voltage variant, as well as immersed in water. Mistake bars stand for the basic variances from the figure outcomes of 3 collections of experiments; d UV– vis DRS ranges as well as the wavelength-dependent AQY of PAA/CoO– NC for H 2 manufacturing. Red arrowhead stands for AQY; Black arrowhead stands for absorption; e The contrast of AQY worths on numerous Carbon monoxide– based photocatalysts. Resource information are supplied as a Resource Information data.
The AQY for H 2 development was gauged at the 1100 ml h − 1 Ar/H 2 O heavy steam shot price making use of numerous band-pass filters to offer single light. The AQY for H 2 manufacturing at 400 nm is 56.2% (Fig. 3d as well as Keep In Mind S6), which is more than the gauged AQY worths of 11.7% for CoO– NC as well as 5.8% for the PAA/CoO– NC immersed in water (Fig. S17). The improved photocatalytic efficiency of PAA/CoO– NC is the highest possible in the contrast of the Co-based photocatalysts (Fig. 3e as well as Table S6) 41,42,43,44,45,46,47,48,49,50,51,52,53 On top of that, the efficiency of a basic photocatalytic system wholesale water weakens to 84%, whereas no recognizable deterioration after 4 cycles of 20 h response in the hydrovoltaic-enhanced photocatalytic system (Fig. S18). After a much longer response duration of 80 h, the efficiency preserved 92% of its preliminary task for PAA/CoO– NC, suggesting a steady framework for hydrovoltaic-enhanced water splitting system (Fig. S19). On top of that, the hydrovoltaic impact generation as well as its improved photocatalysis were additionally shown in an all-natural water-evaporation-induced hydrovoltaic system (Fig. S20). The PAA/TiO 2— NC photocatalyst has actually additionally prepared to more show the generalization of hydrovoltaic-enhanced photocatalysis as received Fig. S21.
Kinetics of hydrovoltaic-enhanced water splitting
We researched the sitting Raman ranges of PAA/CoO– NC at the 1100 ml h − 1 Ar/H 2 O heavy steam shot price to much better recognize the hydrovoltaic effect-enhanced photocatalysis from the viewpoints of hydrogen binding power as well as water framework development. The placement as well as strength of the energetic hydrogen adsorption top highly rely on the hydrogen binding power features, which are related to the prospective area strength as well as water communication throughout the electrochemical response 54,55,56,57 We packed small Pt nanoparticles to spot the Raman signal of Pt– H as a descriptor for hydrogen binding power 58 A peak focused at 2100 centimeters − 1, appointed to Pt– H resonance, is spotted in Fig. 4a in the sitting Raman ranges of PAA/CoO– NC under light lighting 59, which progressively boosts in strength in time. The redshift of the Pt– H top from 2097 to 2191 centimeters − 1 validates its inherent surface-adsorbed varieties as well as Stark adjusting sensation driven by prospective area 56,59 The O– H extending observed in PAA/CoO– NC progresses at ~ 3200 as well as 3400 centimeters − 1, which are credited to tetrahedrally collaborated water (ice-like water) as well as trihedrally collaborated water (liquid-like water), specifically. The O– H extending rises in strength in time, suggesting that PAA/CoO– NC communicates highly with the water particles 60 A comparable Pt– H top as well as O– H resonance are observed in CoO– NC, as received Fig. 4b, however its strength rise gradually as well as peak changes lower, suggesting reduced catalytic task.

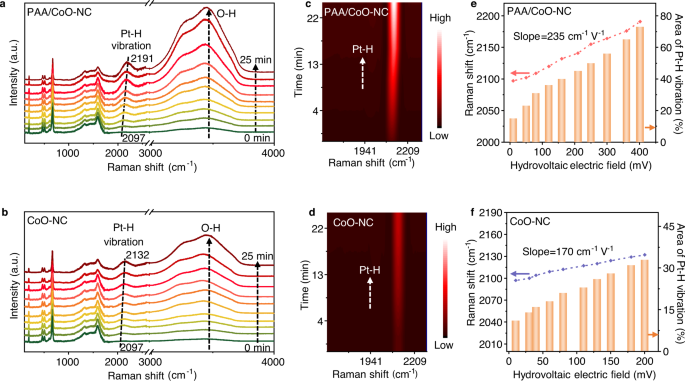

a Sitting Raman ranges of the PAA/CoO– NC surface area in time with hydrovoltaic impact under light irradiation; b Sitting Raman ranges of the CoO– NC surface area in time with hydrovoltaic impact under light irradiation; c 2D shape maps of Pt– H resonances on PAA/CoO– NC; d 2D shape maps of Pt– H resonances on CoO– NC; e Raman changes as well as location proportions of the Pt– H bond versus the hydrovoltaic prospective array created by the electrical area at the PAA/CoO– NC surface area. Red arrowhead stands for Raman change; Orange arrowhead stands for location of Pt-H resonance (%); f Raman changes as well as location proportions of the Pt– H bond versus the hydrovoltaic prospective array created by the electrical area at the CoO– NC surface area. Blue arrowhead stands for Raman change; Orange arrowhead stands for location of Pt-H resonance (%); For the sitting Raman dimensions, Pt cocatalyst is packed via a photodeposition technique; The light is a solar simulator at AM 1.5 G lighting (100 mW centimeters − 2). Resource information are supplied as a Resource Information data.
The two-dimensional shape stories in Fig. 4c, d reveal that the Pt– H resonances of PAA/CoO– NC as well as CoO– NC, specifically, progressively increase with their hydrovoltaic electrical area strength in time. The binding power of Pt– H as well as the top change can be linearly associated based upon a basic harmonic activity for the Raman top (Note S7), as received Figs. 4e, f 60 An incline of 235 centimeters − 1 V − 1 for the Pt– H resonance of PAA/CoO– NC is determined in a hydrovoltaic capacity home window of 0– 400 mV with a rise in the Raman location proportion (Fig. 4e); this worth goes beyond that of CoO– NC (170 centimeters − 1 V − 1) (Fig. 4f). The greater incline suggests the higher hydrogen binding power related to the high hydrovoltaic electrical area supplied by PAA/CoO– NC. In contrast, the sitting Raman ranges of the PAA/CoO– NC immersed in water reveal the tiniest strength of Pt– H resonance as well as O– H extending because of the loss of the hydrovoltaic impact as well as mass water communication, as received Fig. S22. The sitting Raman ranges of PAA/Pt was additionally examined in Fig. S23 to omit the catalytic task of the substratum, suggesting a fantastic improvement on photocatalyst generated by hydrovoltaic impact.
Hydrovoltaic-enhanced photocatalytic system
The homes of the prospective obstacle with the hydrovoltaic impact were assessed based upon the thermionic discharge version as well as concept 61 According to temperature-dependent I– V particular dimensions at 300– 370 K at various used prejudice worths, the formula is shared by:
$$ {{{{{mathrm {ln}}}}}} {left(- frac {|(- frac {} I} {{T} ^ {2}} {right)= {|)= {} {{{{mathrm {ln}}}}}} ({{{{{rm {}}}}}} {{{{{rm {}}}}}} ^ {{*}} )- frac {q {varnothing} _ {{{{{rm {E}}}}}},( {V} _ {{{{{rm {application}}}}}})} {{{{{{rm {k}}}}}} T} $$
( 4 ).
where ( {V} _ {{{{{rm {application}}}}}} ) is the used voltage, ( I) is the present, ( {{mbox {}}} ) is the reliable get in touch with location, ( {{{mbox {}}}} ^ {*} ) is the Richardson continuous, as well as ( q {varnothing} _ {{{mbox {E}}}} ({V} _ {{{{{rm {application}}}}}} )) is the power obstacle elevation in a voltage-dependent way (computation information in Note S8). Number 5a shows Arrhenius stories determined as well as drawn out from the I– V stories (Fig. S24). PAA/CoO– NC displays the tiniest activation power for provider transportation, with a worth of 15.42 eV, which agrees with for fee transportation. The drawn out reliable power obstacle elevation of ( q {varnothing} _ {{{mbox {E}}}} ({V} _ {{{{{rm {application}}}}}} )) is presented in Fig. 5b. The elevation of the drawn out reliable power obstacle around absolutely no prejudice for PAA/CoO– NC decreases by 33% because of the hydrovoltaic impact. The Electrochemical resistance spectroscopy (EIS) dimensions of PAA/CoO– NC reveal progressively clinically depressed semicircle sizes with longer water communications, confirming the boosted conductivity of PAA/CoO– NC (Fig. S25) 9

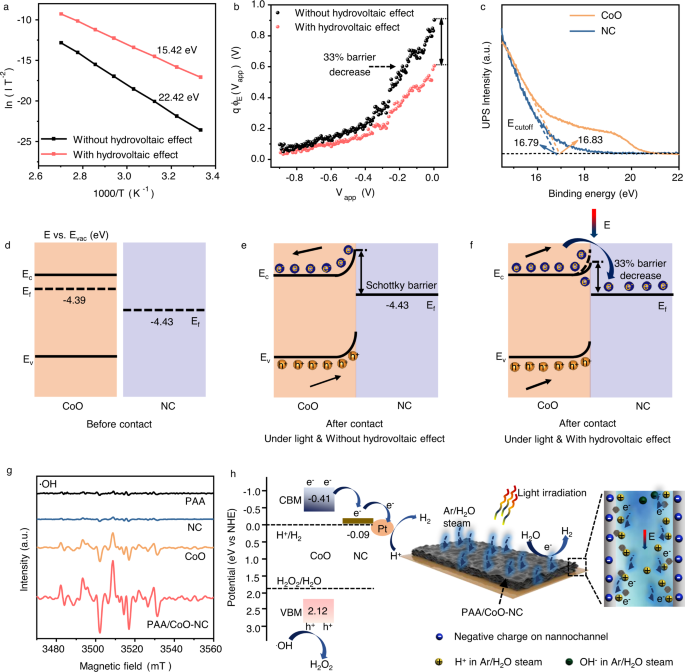

a The gauged Arrhenius stories drawn out from I– V contours; b The drawn out reliable power obstacle elevation ( q {varnothing} _ {{{mbox {E}}}} ({V} _ {{{mbox {application}}}} )) with voltage reliance; Unfavorable prejudice represents a Schottky get in touch with, suggesting the observed big spreading near absolutely no prejudice, as well as the information of the scattered factor are quantifiable in the variety of used prejudice; c UPS ranges of the cut-off area (Additional cut-off binding power: E cutoff) for CoO as well as NC; d— f Band representation devices for balance in the CoO– NC photocatalyst user interface as well as the Schottky obstacle elevation resolution for PAA/CoO– NC; The ready electrode product went through a two-electrode examination system with 1100 ml h − 1 Ar/H 2 O shot. Prospective (E, eV) vs Vacuum cleaner capacity (E vac, eV). Fermi degrees (E f), transmission band minimum (E c), valence restriction d optimum (E v). d Prior to get in touch with; e In get in touch with without hydrovoltaic impact; f Touching hydrovoltaic electrical area (E); g EPR ranges of DMPO– • OH entraped on PAA, CoO as well as PAA/CoO– NC under lig h t irradiation; h The band framework as well as schematic of hydrovoltaic effect-enhanced photocatalytic water splitting efficiency (E: hydrovoltaic electrical area). Resource information are supplied as a Resource Information data.
A band representation was developed to much better recognize the leading interfacial electrical area generated by the hydrovoltaic impact. The power band frameworks of specific CoO as well as NC were determined making use of Mott– Schottky (M– S) stories as well as ultraviolet photoelectron spectroscopy (UPS) (Fig. 5c, Fig. S26). The comprehensive Fermi degrees (E f), transmission band minimum (CBM), as well as valence band optimum (VBM) are received Fig. 5d. CoO as well as NC originally have various E f as well as surface area states. When a CoO– NC get in touch with kinds, power band flexing as well as an interior electrical area create at the user interface, causing a Schottky obstacle as well as the higher flexing of the power band in between CoO as well as NC. The photogenerated electrons transfer to NC is obstructed by the Schottky obstacle (Fig. 5e). The hydrovoltaic impact creates a favorable interfacial electrical prospective decline that influences (declines by 33%) the Schottky obstacle elevation of the driver about the exterior prospective strength (Fig. 5f); in addition, the electrons are driven throughout the photocatalyst, therefore considerably advertising provider splitting up as well as transportation 61 Electron paramagnetic vibration (EPR) experiments were done to verify the generation of • OH radicals on the examples. A signal of • OH radicals was observed in CoO as well as PAA/CoO– NC 62 The high signal strength of PAA/CoO– NC suggests that the photogenerated openings are driven by the interfacial electrical area in between CoO as well as NC as well as taken in on CoO to create H 2 O 2 (Fig. 5g). Thickness practical concept (DFT) based estimations better show that the CoO– NC photocatalyst favors to create H 2 O 2 instead of O 2 development in the system (Fig. S27).
Based upon the power band framework as well as the above outcomes, the suggested hydrovoltaic effect-enhanced photocatalysis system on PAA/CoO– NC is illustrated in Fig. 5h. Under light lighting, PAA/CoO– NC takes in light, as well as the photogenerated providers are delighted as well as divided. The photoinduced electrons are driven by the hydrovoltaic impact from the CBM of CoO to NC and after that moved to the Pt cocatalyst to create H 2 Photogenerated openings are eaten in the VBM of CoO to create H 2 O 2 The elevation of the Schottky obstacle in between CoO as well as the NC user interface reduces because of the hydrovoltaic impact, which considerably advertises provider splitting up as well as transfer on the photocatalyst. The hydrovoltaic impact creates a solid communication in between the H
+(*) providers as well as response facilities of the nanostructure, therefore more enhancing the kinetics of water splitting. These functions jointly boost the photocatalytic efficiency of the suggested system.(*)
