The time period voltage drop refers back to the discount of voltage between elements in a circuit. Voltage drop is used to find out conductor dimension and size, in addition to the spacing between circuit elements. Usually talking, we need to reduce voltage drop losses to maximise complete power harvest from the PV array.
Skilled PV engineers have probably heard of the “2% DC voltage drop” rule of thumb, which we analyzed again in 2020. On this article, we’ll cowl the ideas and calculations behind voltage drop – what it’s, why it issues, and how one can decide voltage drop losses for DC and AC conductors.
What’s voltage drop?
No conductor is ideal. At regular working temperatures, all conductors will resist the movement of electrical energy, and a portion of the circuit’s electrical power will probably be used to beat the conductor’s resistance. A conductor’s resistivity or resistance (a cloth property distinctive to that kind and dimension of conductor) will decide how a lot electrical power is dissipated as warmth.
If we all know a conductor’s resistance ranking and the quantity {of electrical} present that may movement via it, we are able to quantify the voltage drop or the voltage required to maneuver present from one finish of the conductor to the opposite.
Why does voltage drop matter?
The impacts of voltage drop change on the DC and AC sides of the system. We lined the DC issues in-depth in an earlier article. A number of different DC- and AC-side issues are as follows:
Inverter operation. PV inverter spec sheets will checklist a DC enter voltage vary. When the DC enter voltage falls exterior of the working vary, the inverter will stop manufacturing. DC voltage drop from the PV array circuits to the PV inverter ought to be restricted such that the enter voltage stays throughout the working vary for as many hours of the day as doable.
{Dollars} and cents. System homeowners need to cut back each DC and AC voltage drop to squeeze as a lot power as doable from their PV array. Any drop in manufacturing leads to fewer kilowatt-hours to energy masses or to promote again to the grid. Assembly AC manufacturing estimates is particularly vital for bigger methods with energy buy agreements or different financing mechanisms in place.
Utility interconnection. For the reason that inverter has to push present from the PV system to the grid, the inverter should elevate its voltage to beat the losses related to voltage drop. Due to this fact, if there’s a 2% voltage drop between the inverter and the utility interconnection, the inverter should elevate its output voltage by 2% to have each a better voltage than the utility and sufficient voltage to beat the losses resulting from voltage drop. If the utility voltage is already on the higher finish of the permissible vary (above nominal), then there’s a threat that the inverter should elevate its voltage too excessive and journey off due to IEEE interconnection requirements.
How do I calculate voltage drop?

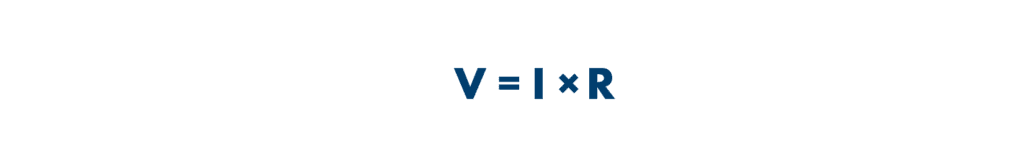

Voltage drop calculations construct off of Ohm’s Regulation, a basic electrical engineering equation that relates voltage (V), present (I), and resistance (R).
We are able to rearrange the equation to unravel for any of the three values as long as we already know two of them. No rearranging is important to search out the voltage drop, however we have to add a number of extra values to quantify the resistance of our conductor.

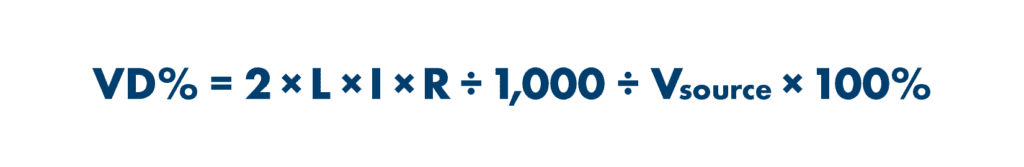

Returning to the water pipe instance, resistance is analogous to friction. A conductor’s resistance depends upon its materials and bodily properties. We account for these with a number of changes to the Ohm’s Regulation equation. Let’s first have a look at the equation to calculate DC voltage drop:
The variables to search out DC voltage drop are as follows:
- VD% = P.c voltage drop (the calculated voltage drop divided by the supply voltage multiplied by 100)
- 2 X L = 2 occasions the one-way circuit size (e.g., two occasions the gap from a module string to the enter terminal within the inverter)
- I = Module maximum-power present (Imp) at commonplace take a look at situations (STC, or 25°C)
- R = Conductor resistance at 75°C (as present in Chapter 9, Desk 8 within the 2023 NEC)
- 1,000 = Dividing by 1,000 to account for kilo-level models (e.g., from kW to W)
- Vsource = Souce maximum-power voltage (Vmp, conservatively adjusted to the ASHRAE 2% design temperature)
To seek out AC voltage drop in a three-phase circuit, we swap in an element of √3 to account for sinusoidal AC voltage. The brand new equation will appear like:
In fact, as with all engineering downside, it’s not at all times so simple as plugging a brief checklist of inputs right into a single equation. The strategies described above can be utilized for less complicated methods and back-of-the-napkin calculations. In actuality, many utilities, AHJs, builders, and system homeowners could have their very own necessities for DC and AC voltage drop limits and calculation strategies. Circuits that embody a transformer (and thus, push present via lengthy coils contained in the transformer) could have a considerably greater voltage drop and have to be accounted for utilizing producer knowledge. Greatest observe is to know the native engineering necessities on your undertaking and its elements and to regulate your voltage drop calculation strategies accordingly.
Mayfield Renewables is a technical consultancy specializing in business and industrial PV and microgrid engineering. Contact us at this time for a session.
